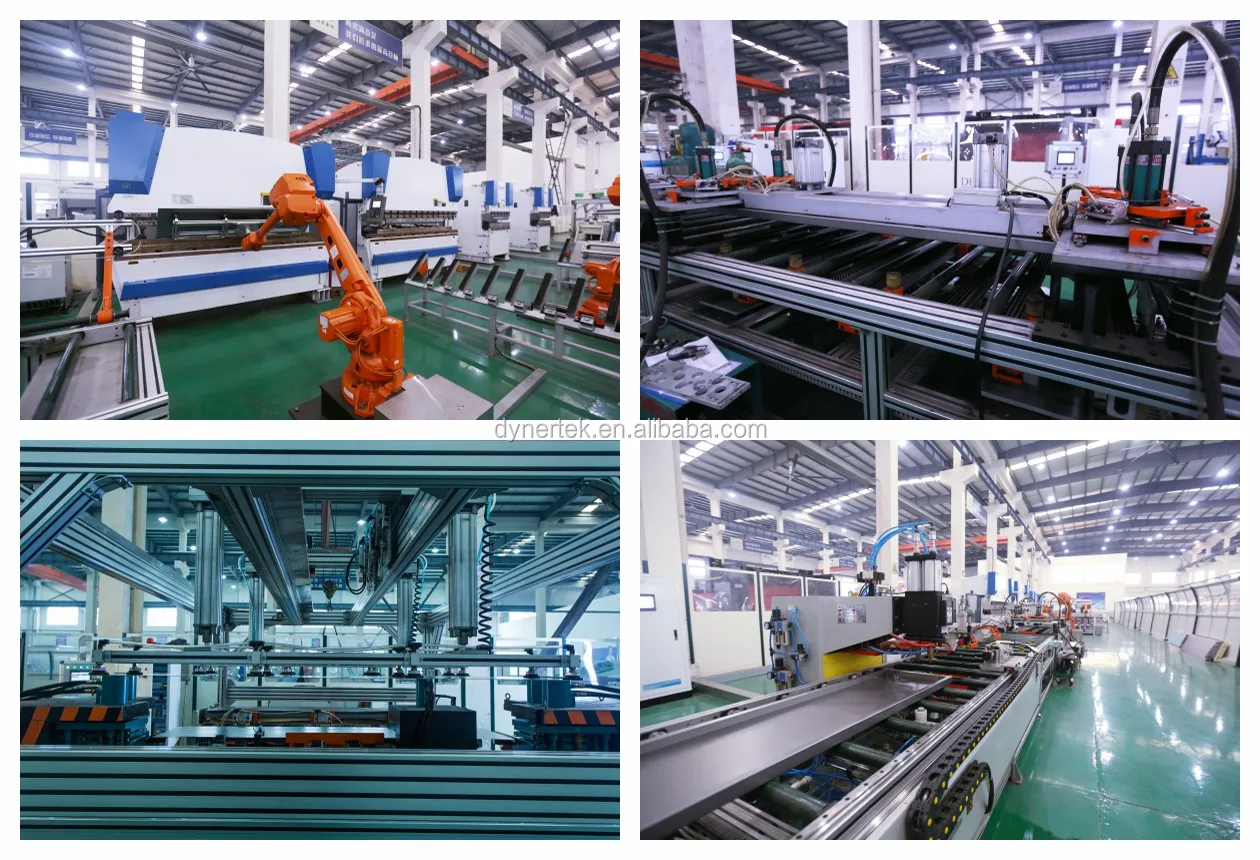

Robotic Automatic Production Line for Elevator Door Panel Making

Product Description

 Product Application

Main Features

*Transmission conveyor is designed to make the workpiece is transferred fast
*Positioning device ensures a sheet is always waiting at the same position for next work process

*TOX riveting technology is adopted to ensure the overlaps at the four sides are riveted strongly
*Positioning and fixture device helps the workpieces always wait at the right place

*Stiffener is welding automatically
*MIG welding ensures two ends of the stiffener are linked tightly
*Two spots are done at a time for great consistency and efficiency
*Tri phase mid-frequency welding control ensures the welding quality is great

*ABB robotics are programmed and controlled to work with bending machines for sheet sides' bending
*Aluminium auxiliary device on robotics is specially designed to pick up and transfer workpieces

*Hydraulic power station makes the punch and cut on door sheets easy and fast
*Punch and cut position is always same on each sheet by the precise positioning device

*Automatic Sheets loading with hydraulic table
*Magnetic separator ensures that sheets are picked up one by one
*Accurate sheet transmission by servo control system
*Aluminium profile with high strength and industrial 4.0 appearance

Specifications
